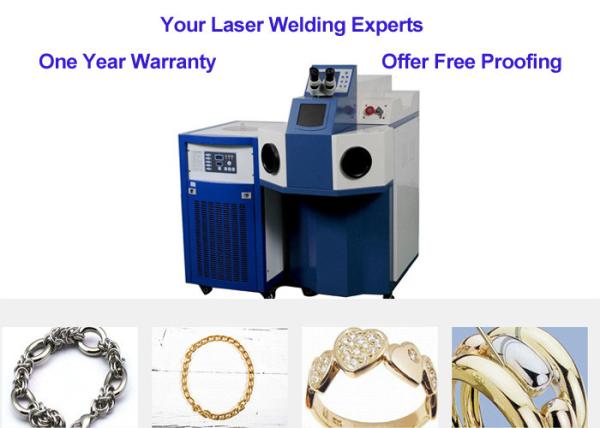

One Year Warranty 400watt Jewelry Laser Spot Welding Machine Price in India
Laser Spot Welding Machine Application
Widely applied in precison manching of micro parts, jewelry accessrioes including ring, pendant, bnecklace, earring, bracelet, especially suitable for patching holes of gold and silver jewelry, spot welding, seam welding, insertion welding and repairing.
Laser Spot Welding Machine Feature
1. One year machine warranty, offer free proofing.
2. This model adopts the humanization design in order to faciliate actual operation, conforms to the principles of the human body engineering, working long hours never be tired.
3. 10x microscope observation system will ensure to observe clearly and make the welding points more beautiful and reliable.
4. 7 inch LED display of operation can realize to change English between Chinese all the time, and can make the operation simple and convenient.
5. Color and shape of machine can be customized according to customers' demand.
6. ODM, OEM are available.
7. An investment with low practical price, no supplies, small maintenance.
Laser Spot Welding Machine Specification
| Name | Jewelry Laser Spot Welding Machine | Observation system | Microscope |
| Power | 600watt | Max Laser Power | 400watt |
| Power System | 6KW | Single Pulse Energy | 90J |
| Pulse Frequency | 0.1-40Hz | Pulse Width | 0.1-20MS |
| Cooling Input | 1.0P | Cooling System | Water Cooling |
| Laser Wavelength | 1064nm | Positional Accuracy | 0.02mm |
| Working Area | 170*170mm | Control System | PC |
| Focal Spot Diameter | 0.1-2.0mm | Power Supply | 220V/50Hz/30A 380V/50Hz/40A |
| Water Pressure Protection | ≤0.025MPa | Weight | 160kg
|
Why Choose Us?
1. 13 Years' Manufacturing and R&D Experience
2. 10 Years' Exporting and Sales Experience
3. Factory Direct without Middle Links and Save Price
4. Professional Technical Team Offers Perfect Proofing Solution
5. Excellent Pre-sales and After-sales team Offer you 24 Hours High Quality Service
6. Export to many coutries and regions, like India, Europe, Brazil, Africa and so on
